Common Q&A of Huazheng Electrical Insulation Oil Dielectric Strength Tester

Please briefly describe the purpose of the dielectric strength tester for insulating oil.
Used to test the breakdown voltage of insulating oil and assess its voltage resistance, it is commonly used in power systems, railway systems, large petrochemical plants, and enterprises.

What are the main types of dielectric strength testers for insulating oil? What are their output voltages?
There are mainly three models: HZJQ-X1, HZJQ-1, and HZJQ-1B. The output voltage of HZJQ-X1 is 0~80KV, the output voltage of HZJQ-1 is 0~100KV, and the output voltage of HZJQ-1B is 0~100KV.

What type of insulation oil dielectric strength tester can export data using a USB flash drive, and what format is the exported data?

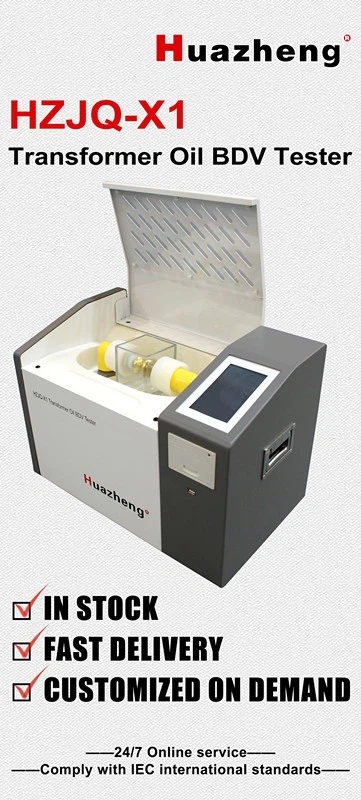

The HZJQ-X1 insulation oil dielectric strength tester can export data in TXT format using a USB flash drive.

What are the types of electrodes for the dielectric strength tester of insulating oil? What type of electrode do we strongly default to?
There are three types of electrodes for the dielectric strength tester of insulating oil: mushroom head, round head (spherical head), and flat head. Our default dielectric strength is mushroom head (standard electrode).

What is the electrode distance of the dielectric strength tester for insulating oil?
The electrode distance is 2.5mm.

What are the advantages of Huazheng's insulation oil dielectric strength tester?
① Power off hold, capable of storing 100 experimental results; ② Capable of measuring and displaying environmental temperature and humidity, as well as displaying the system clock; ③ Equipped with overvoltage, overcurrent, and limit protection to ensure the safety of operators; ④ After the experiment is completed, the thermal printer can be set to automatically print results with the function of switching between Chinese and English.
