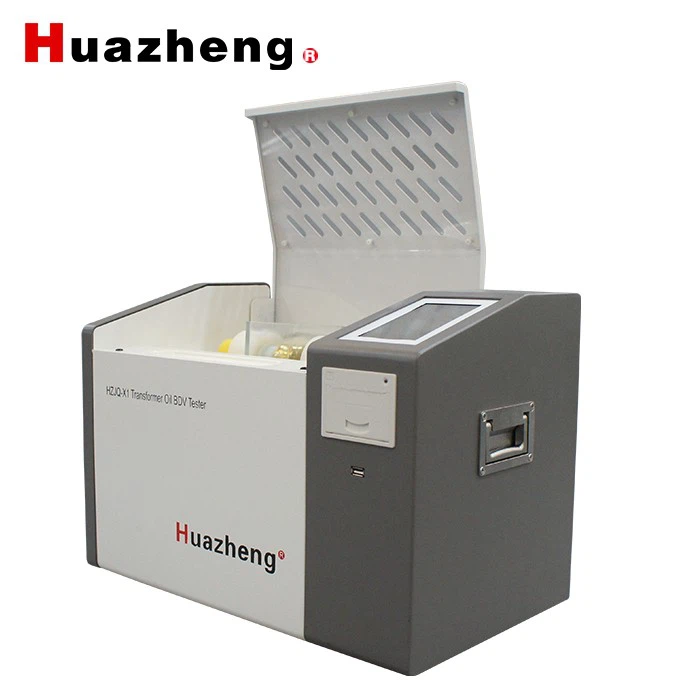

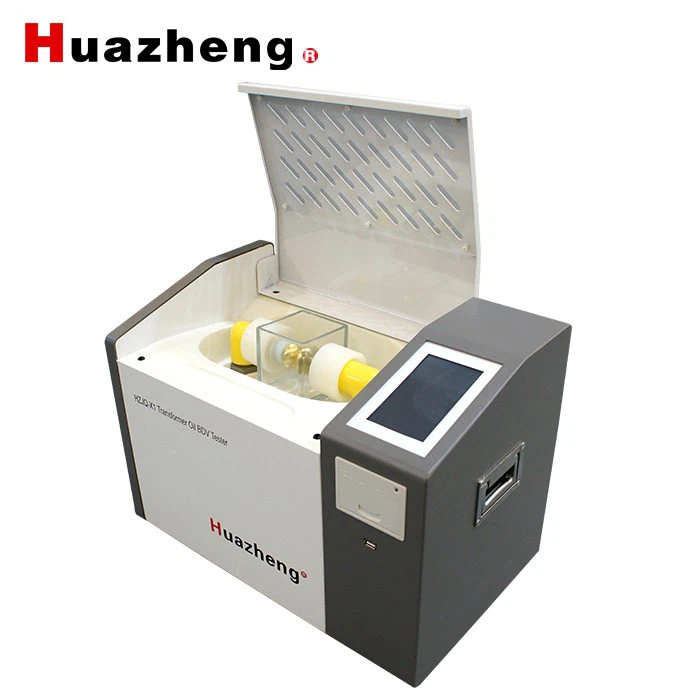

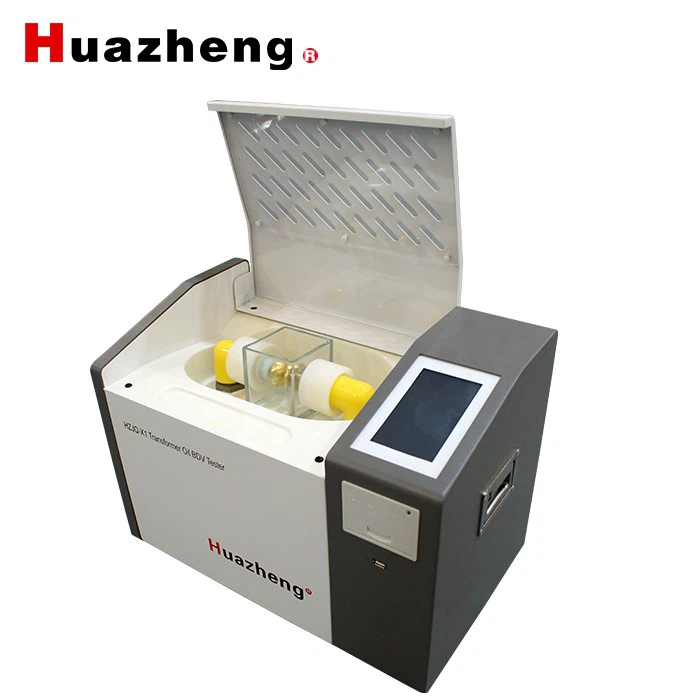

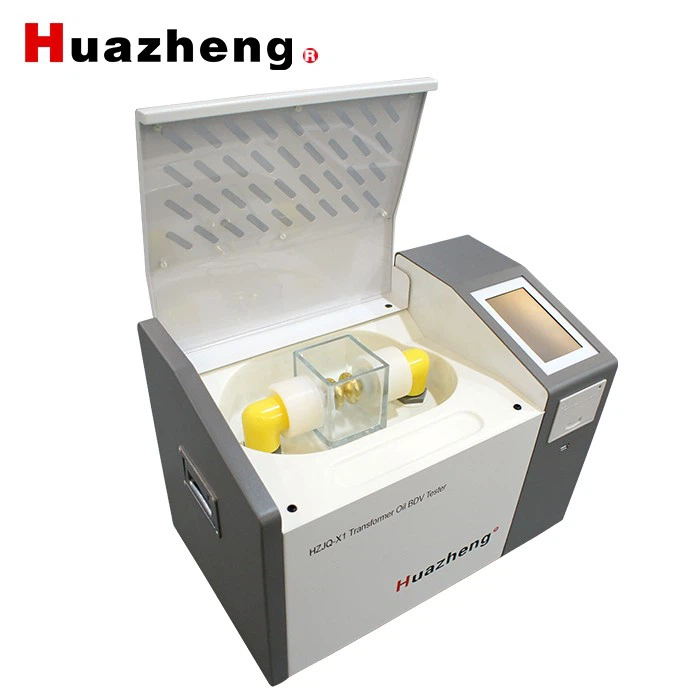

HZJQ-X1 80kV Transformer Oil BDV Tester
HZJQ-X1 80kV Transformer Oil BDV Tester Many power systems, railway systems, large-scale petrochemical plants, and enterprises use a significant amount of electrical equipment, the internal insulation of which is mostly of the oil-filled type. Therefore, testing the dielectric strength of insulating oil is both common and necessary. To meet market demand, we have developed and produced a series of insulating oil dielectric strength testers in accordance with national standard GB/T507-2002, industry standard DL429.9-91, and the latest Electric Power Industry Standard DL/T846.7-2004. This instrument, which uses a microcontroller as its core, operates fully automatically with high accuracy, significantly improving work efficiency and reducing labor intensity. Moreover, it is compact and easy to carry.
HZJQ-X1 80kV Transformer Oil BDV Tester
Products Description
From power grids to railways, petrochemical plants to industrial enterprises, oil-filled electrical equipment is everywhere-and so is the need for reliable dielectric strength testing.
That's why we developed our series of insulating oil dielectric strength testers-fully compliant with GB/T 507-2002, DL 429.9-91, and DL/T 846.7-2004. Powered by a single-chip microcomputer, these instruments deliver fully automated, high-accuracy testing that boosts efficiency and cuts labor costs. Compact and portable, they're ready to go wherever you need them.
Technical Data
|
MAJOR TECHNICAL INDICATORS |
|
|
Output voltage |
0～80kV (optional) |
|
Voltage distortion rate |
＜3% |
|
Booster capacity |
0.4kVA×2 |
|
Measuring accuracy |
±3％ |
|
Supply voltage |
AC220V±10% 50Hz±1 Hz |
|
Applicable temperature |
0℃～45℃ |
|
Applicable humidity |
＜75%RH |
Transformer Oil BDV Tester maintenance
Maintenance
1.This equipment should not be exposed to a moist environment.
2.Keep the oil cup and electrodes clean. Fill the cup with fresh transformer oil for protection when the equipment is idle. Before reusing the cup, check the electrode distance and ensure the tightness between the electrode tip and the electrode bar screw thread.
FAQ
1. When can I get a price quote?
You can contact us online or submit an inquiry. We typically provide a quote within 24 hours after receiving your request.
2. How do you handle after-sale service for overseas customers?
For issues occurring with our products, we offer:
12-month warranty coverage (see details below).
Online technical guidance to troubleshoot problems remotely.
Replacement parts shipped promptly based on your needs.
On-site support (if required): Our engineers can travel abroad to resolve critical issues.
3. What is the warranty period?
Our standard warranty period is 12 months (1 year). During this time, we provide:
Free technical support.
Replacement parts for manufacturing defects.
Solutions tailored to your specific issue.
