100kV Oil Immersed AC DC Hipot Tester
HZJ oil-immersed test transformer is designed with precision and quality in mind, featuring robust construction and advanced technology to ensure optimal functionality and durability. With a compact and ergonomic design, it is easy to transport and install, making it suitable for both laboratory and field testing environments.
100kV Oil Immersed AC DC Hipot Tester
Oil Immersed AC DC Hipot Tester Work Principle

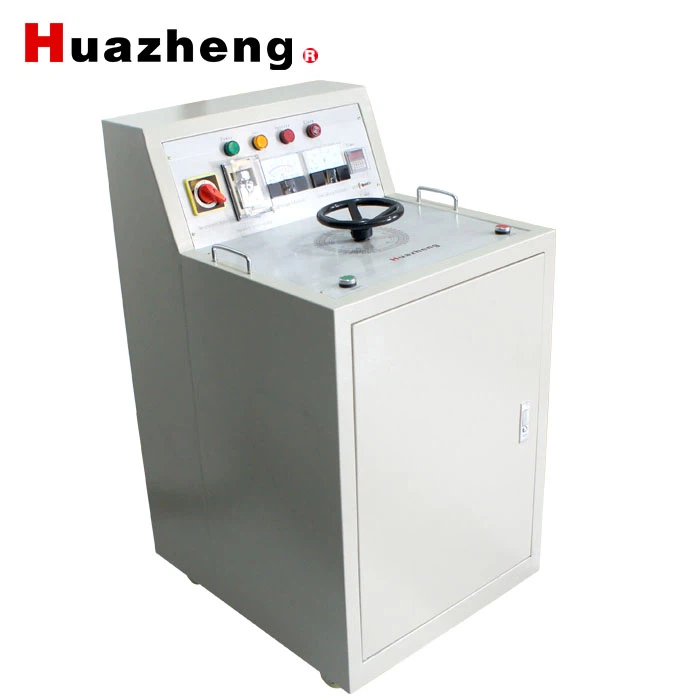

Connecting the control unit (which is supplementary equipment for the test transformer; for details, see the instruction manual) requires a work frequency of 220V (or 380V for units above 10 KVA). Adjust the 0-220V/380V voltage input to the HZJ (HZJZ) test transformer's primary winding through an autotransformer. According to the principle of electromagnetic induction, the secondary (high voltage) winding can achieve a voltage value that is a multiple of the primary winding, corresponding to the rated frequency, resulting in high-frequency voltage. Direct current high-frequency voltage is obtained after being rectified by a high-frequency silicon stack and filtered by a capacitor, with its amplitude being twice that of the work frequency.
Our 100kV Oil Immersed AC DC Hipot Tester is designed with precision and quality in mind, featuring robust construction and advanced technology to ensure optimal functionality and durability. With a compact and ergonomic design, it is easy to transport and install, making it suitable for both laboratory and field testing environments.
Technical parameters
|
Model |
Capacity(KVA) |
High Frequency Voltage Output Voltage (KV) |
High Frequency Voltage Output Current(mA) |
Low Frequency Voltage input |
Ratio |
Tempera- ture(℃) raised/ 30 minute |
|
|
V |
A |
||||||
|
HZJ -20 |
20 |
100 |
200 |
380 |
53 |
1000 |
10 |
Beijing Huazheng Technology Co.,LTD.
Tel: +8613731210226
Email: sales03@bdhuazheng.com
Add: 801, No.3 Suzhou Street, Haidian District, Beijing
FAQ
1. When can I get a price quote?
You can contact us online or submit an inquiry. We typically provide a quote within 24 hours after receiving your request.
2. How do you handle after-sale service for overseas customers?
For issues occurring with our products, we offer:
12-month warranty coverage (see details below).
Online technical guidance to troubleshoot problems remotely.
Replacement parts shipped promptly based on your needs.
On-site support (if required): Our engineers can travel abroad to resolve critical issues.
3. What is the warranty period?
Our standard warranty period is 12 months (1 year). During this time, we provide:
Free technical support.
Replacement parts for manufacturing defects.
Solutions tailored to your specific issue.
