HZM2060 Non-Contact Phase Detector

Name: China HZM2060 Non-Contact Phase Detector Manufacturers Suppliers Factory - Good Price - Huazheng Technology
Brand: Huazheng
SKU: 255641089

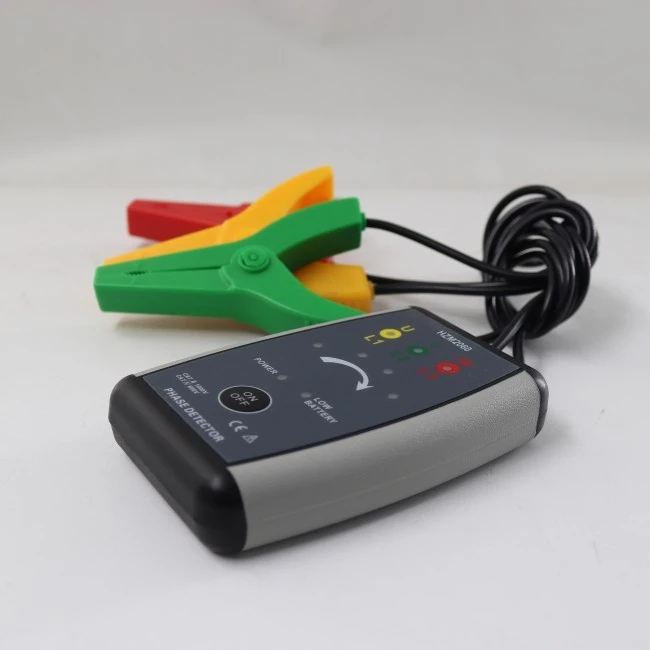

Huazheng HZM2060 Non-Contact Phase Detector represents a major breakthrough in traditional phase sequence detection methods. Unlike conventional phase sequence detection, which requires opening the three-phase wire terminal and connecting the exposed clips or test pins to the live wires, the HZM2060 uses clamp-type, non-contact inductive measurement. This means there is no need to disconnect wires or touch high-voltage live wires. The device directly detects the phase sequence by clamping the three high-insulation inductive clamps onto the insulated sheaths of the three-phase live wires. It is both safe and reliable. The HZM2060 is widely used in various fields such as electric power, communications, meteorology, railways, oil fields, construction, measurement, scientific research, education, and industrial and mining enterprises. Additionally, it provides acousto-optic signals to indicate whether the phase sequence is normal or reversed.

Send Inquiry

HZM2060 Non-Contact Phase Detector

Products Description

I. Brief Introduction

The Non-Contact Phase Detector also offers additional functions such as live line inspection, power line testing, open circuit detection, break point location, and line maintenance.

It provides quick and easy detection, offering clear results at a glance. This greatly enhances the safety of field tests, effectively protecting the personal safety of operators, while also increasing productivity. It is an essential safety instrument for phase sequence detection, motor testing, and line maintenance in three-phase power systems.

II .Technical Specifications

Function	Phase detection (positive phase, reverse phase), live line inspection, simple electricity inspection, phase loss judgment, circuit breaker search, break point location, and line maintenance.
Power	9V battery, continuous use time is about 70 hours.
Measure mode	Non-contact clipping method
Wire position	The measured wire is in the center of the jaw
Frequency	50Hz/60Hz Automatic Identification
Live electricity range	AC70～1000V,45/65Hz(Sine wave continuous input),Conducted electrostatic detection
Measuring the highest voltage	AC1000V
Clamp wire size	Outside diameter ø1.5mm～ø48mm
Display	【Positive phase】4 phase detector lights are turned on in a clockwise direction;
	【Reverse phase】4 4 phase detection lights are turned on counterclockwise;
	【Live electricity】L1, L2, L3 lights in the voltage setting range;
	【Lack of phase】L1 or L2 or L3 lights are not lit;
	【Open circuit】L1 or L2 or L3 lights are not lit
Beep	【Positive phase】The instrument emits intermittent short beep;
Beep	【Reverse phase】The instrument emits a continuous long beep.
Battery check	After the power is turned on, the POWER indicator is on; the battery is low; the LOW BATTERY lamp is on.
Clamp lead length	0.6m
Instrument size	L 117.6mm×W 81mm×T 25mm
Automatic shut-down	After about 6 minutes of power on, the meter automatically shuts down to reduce battery consumption.
Battery voltage	When the battery voltage drops to about 5.2V, the battery voltage is low symbol to remind to replace the battery
Instrument weight	Instrument：260g(including battery)
Maximum rated power	300mVA
Working temperature and humidity	-10℃～55℃;below 80%rh
Storage temperature and humidity	-20℃～60℃;below 90%rh
Insulation strength	3.7kVrms
Suitable for Safety Regulations	EN61010-1：2001,EN61010-031：2002,pollution grade 2,CAT Ⅲ(600V),Instant overvoltage 6000V.

III. Electrical Symbol

	Extremely dangerous! The operator must strictly abide by the safety rules, otherwise there is a danger of electric shock, resulting in personal injury or casualty accident.
	Warning!The operator must strictly abide by the safety rules, otherwise it will cause personal injury or equipment damage.
	Double insulation
	AC
	DC
