Huazheng HZM9032 Leakage Switch Tester For Electricity

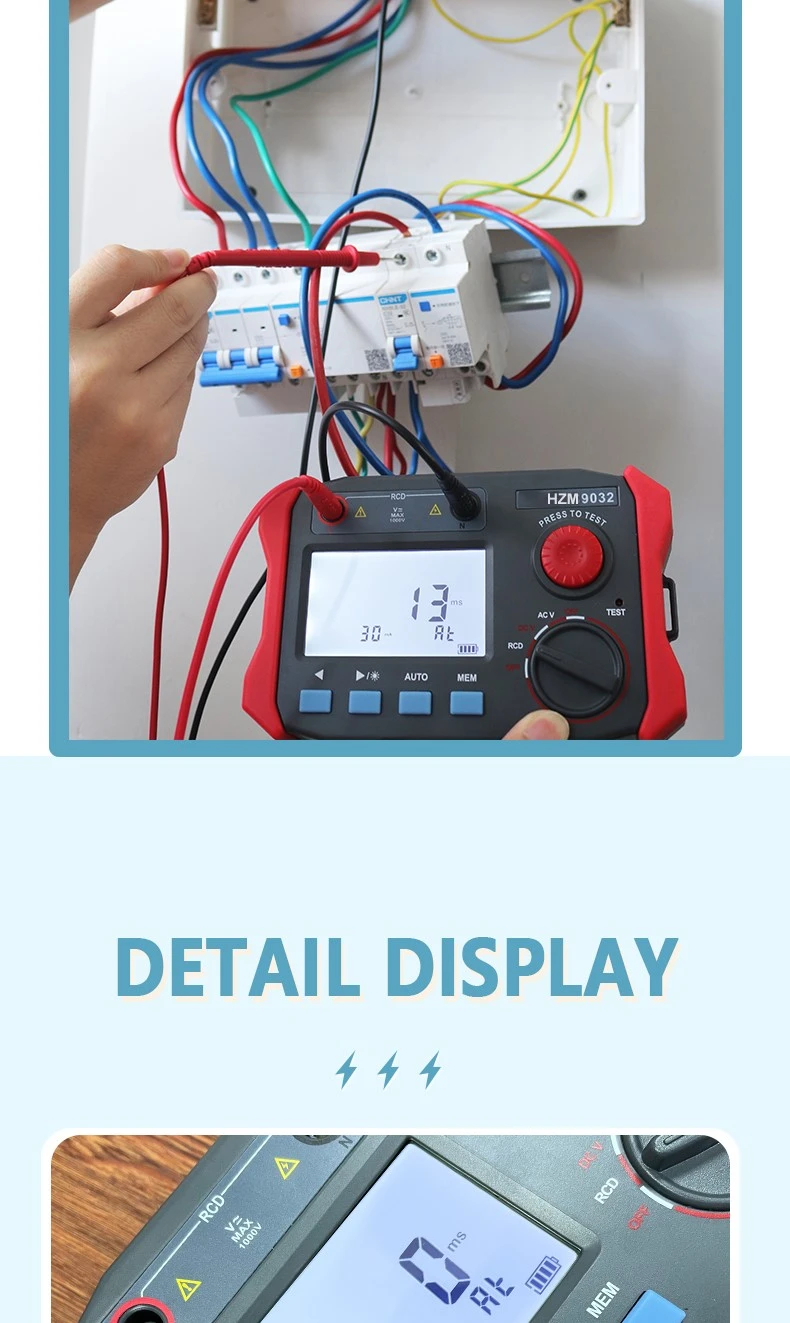

Huazheng HZM9032 Leakage Switch Tester, also known as the Leakage Switch Detector, Leakage Protector Tester, Residual Current Action Protector Detector, or Residual Current Action Protector Tester, is an essential testing instrument for engineering quality supervision stations and construction companies. It measures the action time and action current of the leakage switch. It is primarily used to test the leakage action current, leakage non-operation current, and leakage action time of the leakage protector. This tester can be widely used in power supply departments, agricultural power sectors, leakage protector manufacturers, labor safety inspection departments in construction, mining, machine tool industries, and among electricians.
HZM9032 Leakage Switch Tester
Products Description
I.Introduction

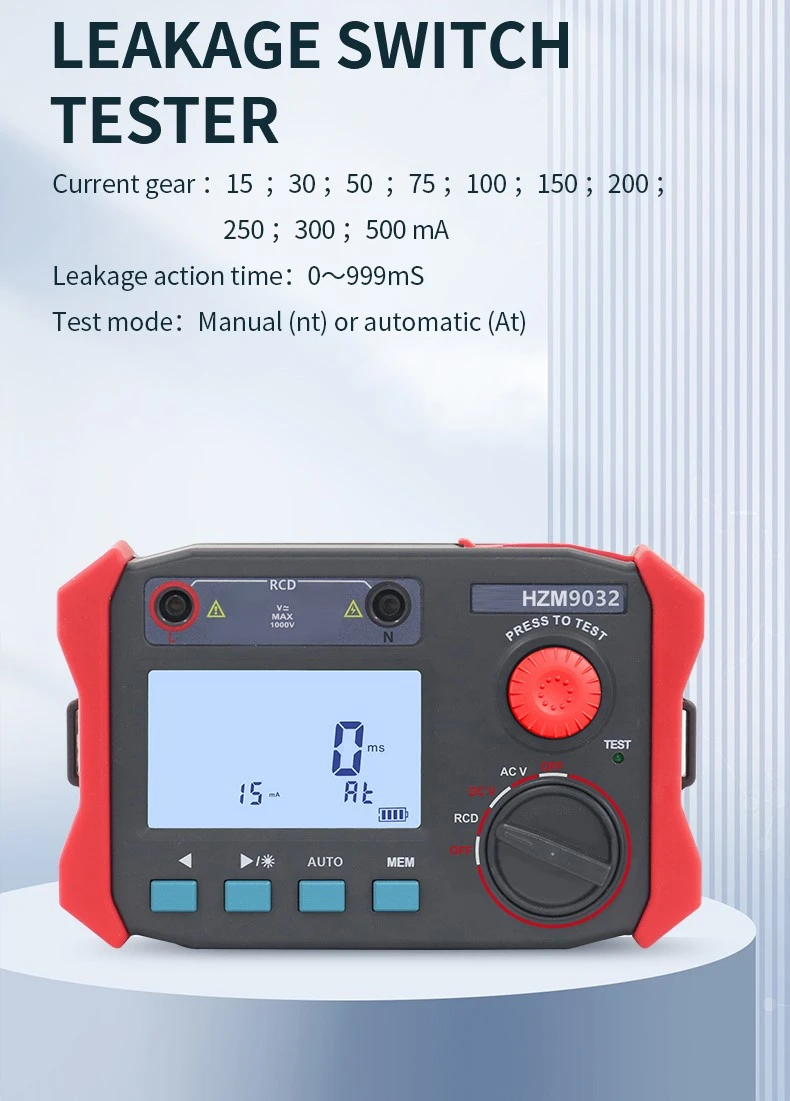

The HZM9032 leakage switch tester consists of a host, test line, and other components. It is simple and portable, featuring a 4-digit super large LCD display with a gray and white screen for clear visibility and easy operation. The device has a large capacity, storing up to 500 sets of data. The AC voltage measurement range is 1.0V to 750V, and the DC voltage measurement range is 1.0V to 1000V, with a measurement accuracy of ±5% rdg ±5 dgt. The test leakage current ranges from 15 to 500 mA, divided into ten levels (15, 30, 50, 75, 100, 150, 200, 250, 300, 500 mA), and the test leakage current action time range is 0 to 999 ms.
II. Technical specifications
|
Function |
Leakage protector action time measurement, leakage protector action current measurement, voltage measurement. |
|
DC voltage range |
1.0～1000V |
|
DC voltage resolution |
0.1V |
|
AC voltage range |
1.0～750V |
|
AC voltage resolution |
0.1V |
|
Leakage current gear |
15 , 30 , 50, 75, 100, 150, 200, 250, 300, 500 mA |
|
Leakage action time |
0～999 mS |
|
Test mode |
Manual (nt) or automatic (At) |
|
Power supply |
8 1.5V (AA) alkaline batteries |
|
Back light |
Controllable gray and white screen backlight, suitable for use in dark places |
|
Auto off |
Instrument shut down after 15 minutes without operation |
|

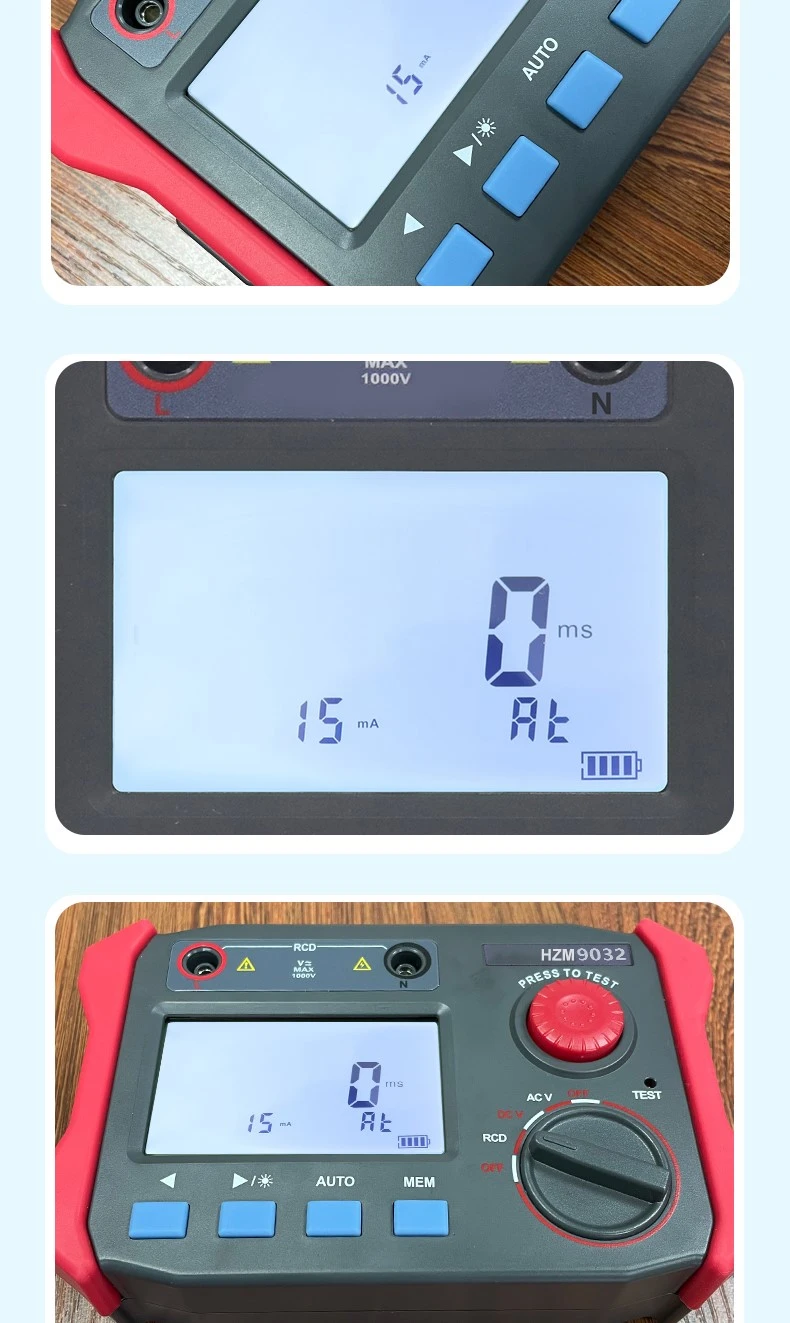

Display mode |
4-digit super large LCD display, gray and white screen backlight |
|
LCD display size |
73mm×43mm |
|

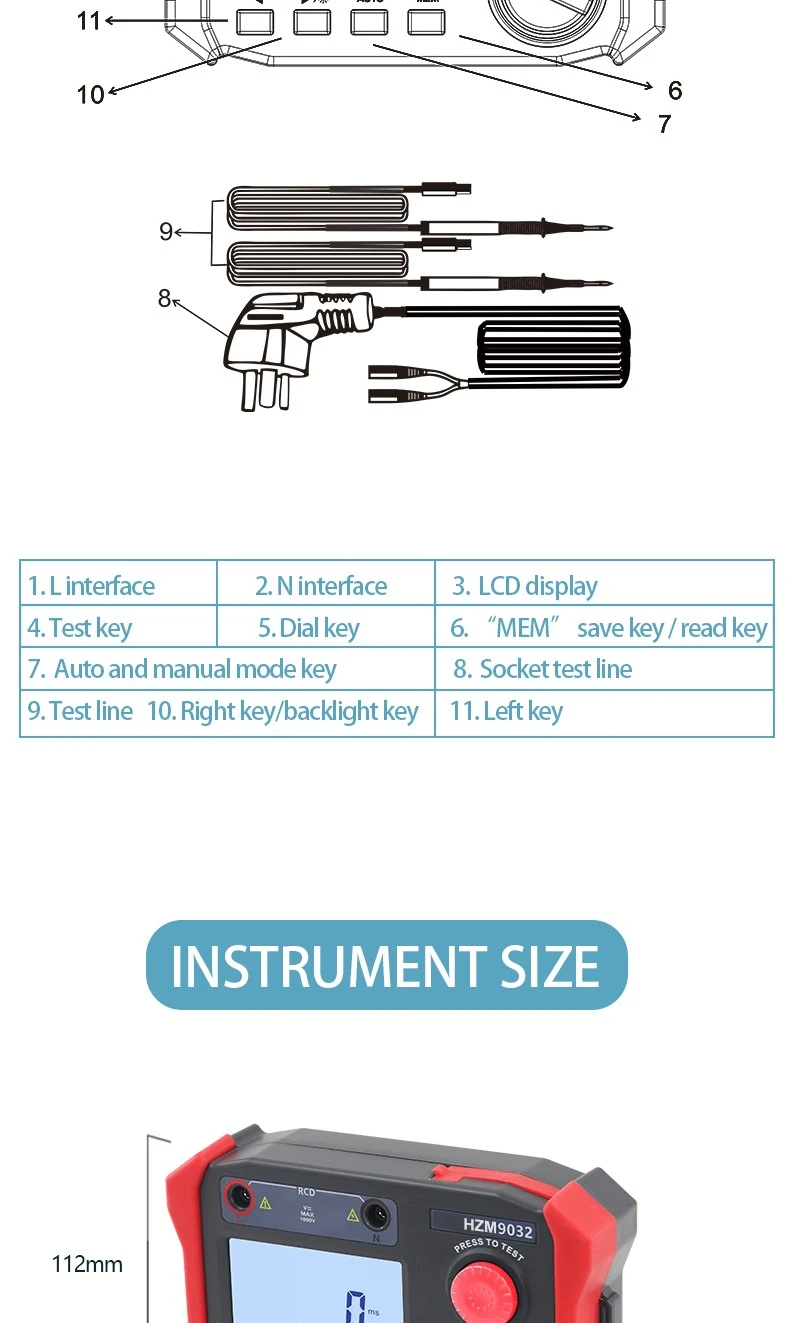

Meter size |
175mm (length)×112mm (width)×53mm (high) |
FAQ
1. When can I get a price quote?
You can contact us online or submit an inquiry. We typically provide a quote within 24 hours after receiving your request.
2. How do you handle after-sale service for overseas customers?
For issues occurring with our products, we offer:
12-month warranty coverage (see details below).
Online technical guidance to troubleshoot problems remotely.
Replacement parts shipped promptly based on your needs.
On-site support (if required): Our engineers can travel abroad to resolve critical issues.
3. What is the warranty period?
Our standard warranty period is 12 months (1 year). During this time, we provide:
Free technical support.
Replacement parts for manufacturing defects.
Solutions tailored to your specific issue.
