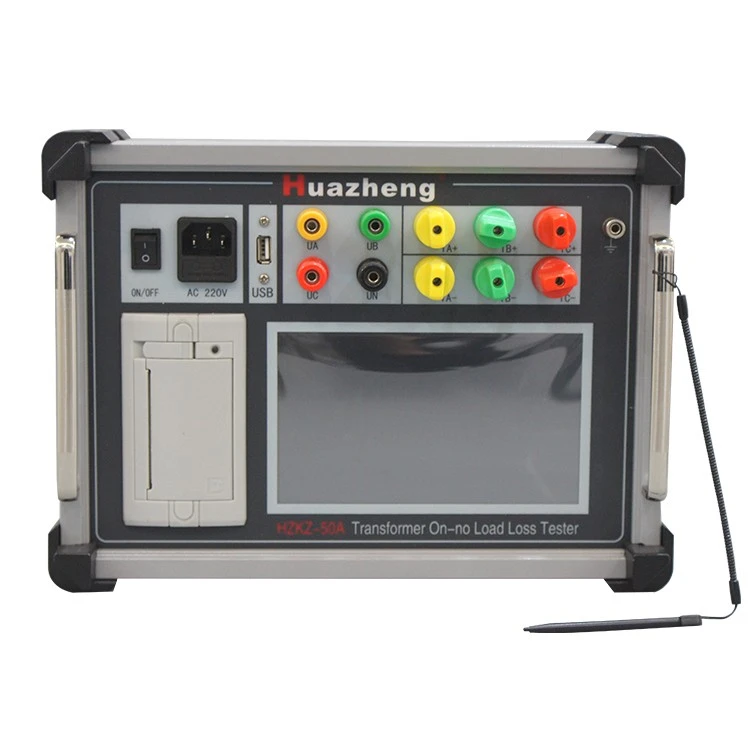

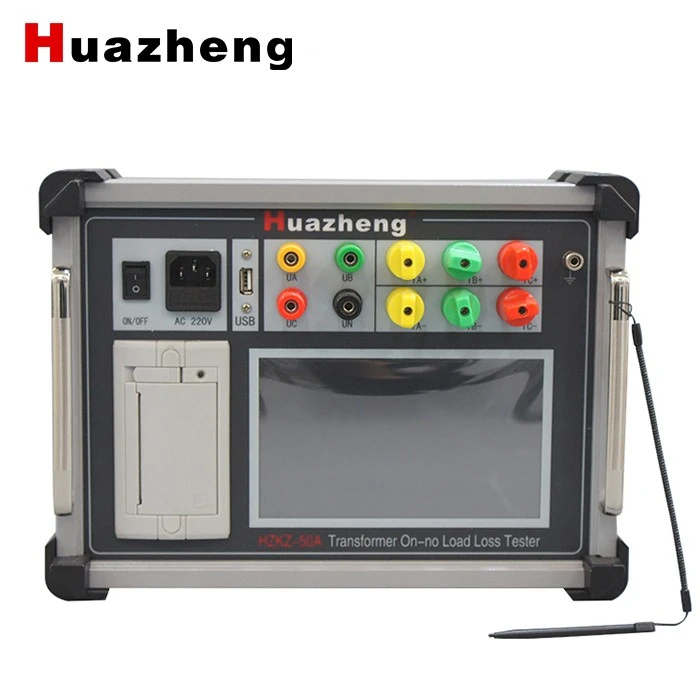

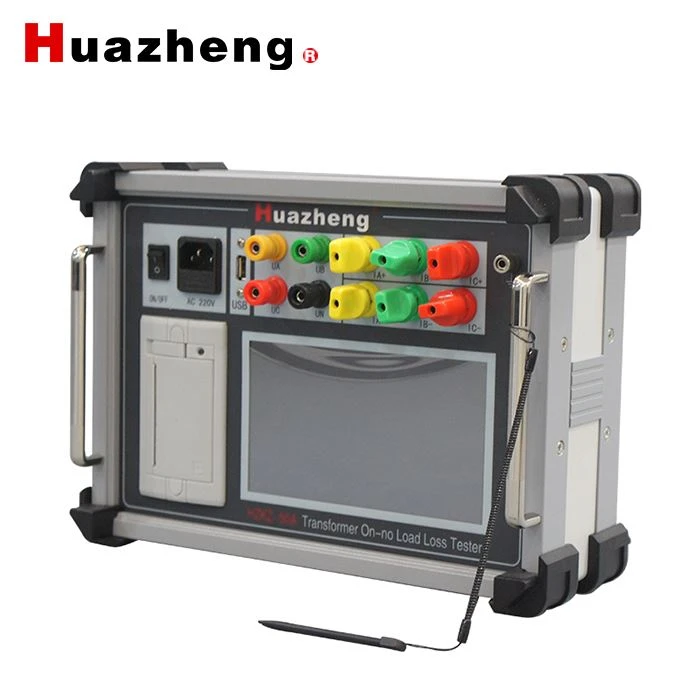

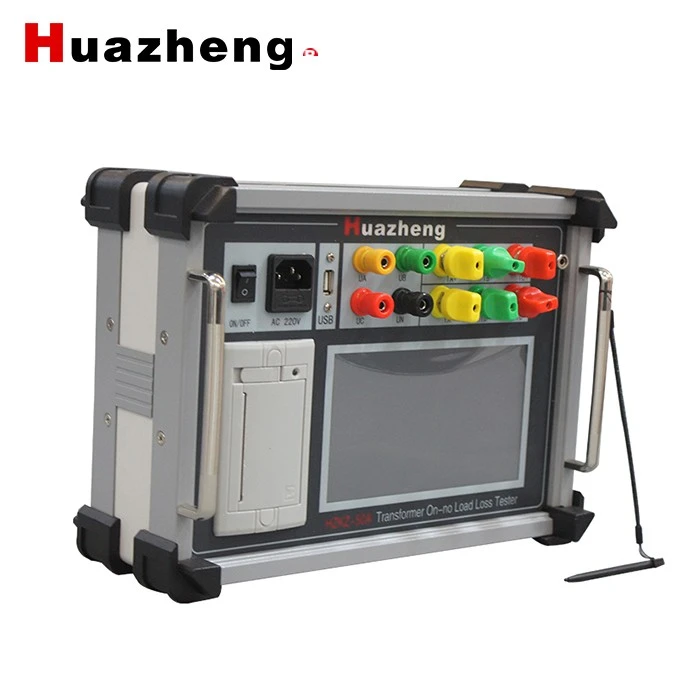

HZKZ-50A Transformer No-load / On-load Loss Tester
The HZKZ-50A Transformer On-No Load Characteristics Analyzer is the latest product from Huazheng Electric Manufacturing (Baoding) Co., Ltd. The instrument features a popular ARM processor, with a base frequency of 168 MHz and 128 MB of memory, which can be expanded to a 4 GB memory card. It uses a 7-inch high-definition color touch panel, combined with the Emwin display interface, making the user interface more intuitive and easy to operate. The analyzer can be operated entirely through the touchscreen, without the need for a keyboard. The instrument supports a database and allows data to be exported via USB drive or transmitted to a computer through a data cable.

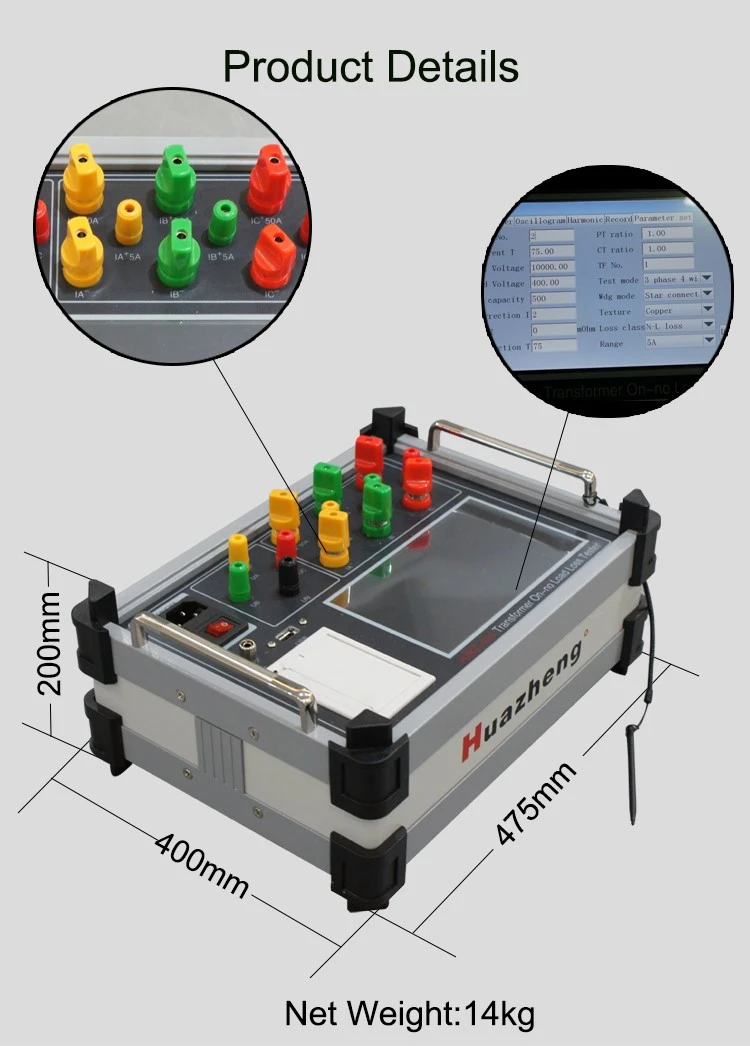

HZKZ-50A Transformer No-load / On-load Loss Tester
Products Description
Overview
The HZKZ-50A Transformer Analyzer is a cutting-edge diagnostic tool designed for precision testing of transformer performance under both on-load and no-load conditions. Combining advanced hardware, intuitive software, and portable design, it delivers unparalleled efficiency in field and lab applications.
Installation and Testing Procedures
Follow Instructions: Operate the instrument strictly according to the provided instructions.
Grounding: Ensure the power wire's grounding terminal is reliably connected to a nearby earth ground.
Touchscreen Care: This is a full touchscreen instrument. Avoid physical impact to prevent damage.
Testing Workflow:
Set Parameters: Before testing:
Input the correct settings based on the transformer being tested.
Enter a storage sequence number to save results under that record.
Click "Save Changes" to save settings and enter the test interface.
Run Test:
Select the required test (e.g., Impedance or Parameters).
Click "Start".
Gradually increase the test voltage to complete the measurement.
End Test:
Click "End".
Save the test record to finalize the process.
II. Main Technical Specifications
| Item | Specification |
| Voltage measurement range | AC 10–500 V (phase voltage) |
| AC up to 850 V (line voltage) | |
| Current measurement range | AC 0.1–50 A |
| Capacity measurement range | 30 kVA–20,000 kVA (direct at 100% rated current) |
| Range extendable with external PT & CT | |
| Measurement accuracy | Voltage: 0.1% (40–70 Hz) |
| Current: 0.1% (40–70 Hz) | |
| Power: 0.2% (PF 1.0–0.2); 1% (PF 0.2–0.01) |
