HZ-3110E-I Handheld 10A Transformer DC Winding Resistance Tester
Huazheng HZ-3110E-i Handheld 10A Transformer DC Winding Resistance Tester Products Description I. Product Overview HZ-3110E-I Handheld DC Winding Resistance Tester is an innovative device, featuring a compact and handheld design for easy portability. It is suitable for measuring inductive...
huazheng hZ-3110E-i Handheld 10A Transformer DC Winding Resistance Tester
Products Description
I. Product Overview
HZ-3110E-I Handheld DC Winding Resistance Tester is an innovative device, featuring a compact and handheld design for easy portability.
It is suitable for measuring inductive components such as transformers and reactors, as well as resistive components like copper bars, conductors, and switch contacts. The instrument offers fast testing speed and high accuracy.
II. Key Features
Compatible with both lithium battery and 220V AC power supply. A single charge allows continuous DC resistance testing of hundreds of transformers, making the process simple and convenient.
Six levels of output current, with a maximum output current of 10A and a maximum output voltage of 25V. Supports automatic current range selection for ease of use.
Wide measurement range with high accuracy: 500 μΩ to 50 kΩ.
Features resistance-temperature conversion and supports an optional wireless temperature measurement module for real-time field temperature monitoring, ensuring accurate resistance conversion.
Multiple protection functions: back EMF protection, open-circuit protection, power-off protection, and over-temperature alarm.
Equipped with a 5.6-inch high-brightness industrial color LCD screen, clearly visible even in strong sunlight.
Supports external printer for easy data printing.
Allows local and USB storage for convenient data management.
Technical Indicators
|
DC resistance test |
|||
|
Current gear |
Measuring range |
Current gear |
Measuring range |
|
10A |
500µΩ ～ 200mΩ |
100mA |
10Ω ～ 200Ω |
|
5A |
10mΩ ～ 1Ω |
10mA |
50Ω ～ 2kΩ |
|
1A |
100mΩ ～ 20Ω |
1mA |
500Ω ～ 50kΩ |
|
Technical index |
|||
|
Accuracy |
(Reading X 0.2%+2 words) |
Maximum resolution |
0.1µΩ |
|
Conditions of use and appearance |
|||
|
Working power supply |
Built in lithium battery or external charger, charger input 100 ～ 240VAC, 50HZ/60HZ |
||
|
Charging voltage |
16.8V |
Charging current |
≤3A |
|
Charging time |
About 4 hr |
Using time |
More than 8 hr |
|
Host weight |
1.6 kg (Test line is not included) |
Dimension |
246mm(L)X 156mm(W) X 62mm(H) |
|
Use of temperature |
-10℃～50℃ |
relative humidity |
≤90%,No dew |
FAQ
1. When can I get a price quote?
We typically provide a quote within 24 hours after receiving your request.
2. How do you handle after-sale service for overseas customers?
For issues occurring with our products, we offer:
12-month warranty coverage (see details below).
Online technical guidance to troubleshoot problems remotely.
Replacement parts shipped promptly based on your needs.
On-site support (if required): Our engineers can travel abroad to resolve critical issues.
3. What is the warranty period?
Our standard warranty period is 12 months (1 year).
Products Cases
Company Profile
Certification
Related Products
Hot Tags: HZ-3110E-I Handheld 10A Transformer DC Winding Resistance Tester, China HZ-3110E-I Handheld 10A Transformer DC Winding Resistance Tester manufacturers, suppliers, factory, 20A DC Resistance Tester, Transformer DC Resistance Tester, Transformer Winding Resistance Test Set, Winding Resistance Test Set, Winding Resistance Tester, winding resistance transformers test kit
HZ-3110B 10A Transformer Winding Resistance Test Kit
100A Transformer DC Winding Resistance Testing Device

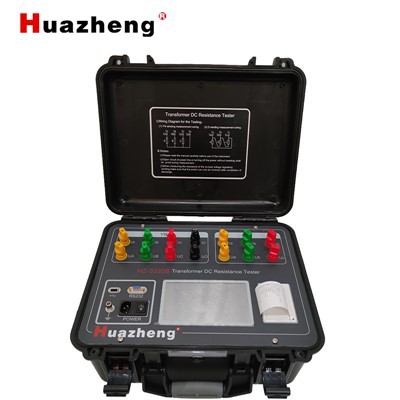

HZ-3320B 3 Channels 20A Transformer Winding Resistan...
