HZ-109S2 2000A Primary Current Injection Test Set
HZ-109S2 2000A Primary Current Injection Test Set Products Description I. Overview Adopted technology of ARM chip controlling output and toroidal transformer with high-capacity and equipped with LCD display meter, the HZ-109S2 Primary Current Injection Tester could simultaneously display primary...
HZ-109S2 Primary Current Injection Tester
Description
The HZ-109S2 Primary Current Injection Tester is a high-performance instrument designed for precise high-current testing in power system applications. It incorporates advanced ARM chip technology for accurate output control, paired with a high-capacity toroidal transformer that ensures stable and reliable current generation.
An integrated LCD display simultaneously presents primary current, secondary current, and turns ratio, providing operators with comprehensive real-time test data at a glance.

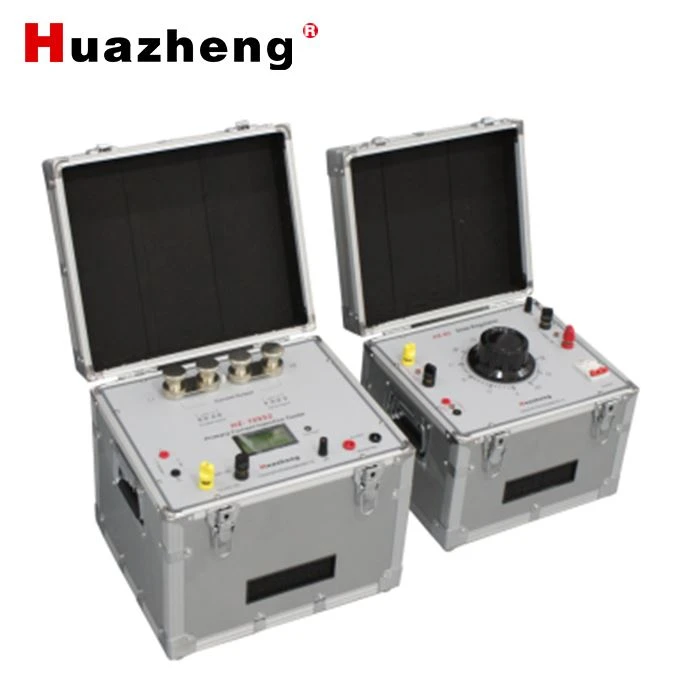

The instrument is housed in an external aluminum alloy case with a PC panel, combining durability with a sleek, professional appearance. Despite its high output capacity, the tester remains compact and lightweight, making it highly portable for field use.
The HZ-109S2 is primarily used for CT turns ratio testing and contact resistance measurement in power systems, as well as other applications requiring high-current injection testing.
Key Specifications
| Input Power Supply | AC 220V, 50A, 50Hz |
| Output Current | AC 2000A · 5V or 1000A · 10V |
| LCD Display Parameters | - Primary current: 0–2200A, resolution 0.1A |
| - Secondary current: 0–6A, resolution 0.001A | |
| - Transformation ratio | |
| - Timer (stopwatch): 0.0001–999.99s, accuracy ±5 digits | |
| - Phase: 0°–360° | |
| Accuracy | True RMS ±(0.3% of reading + 0.2% of full scale) |
Principle

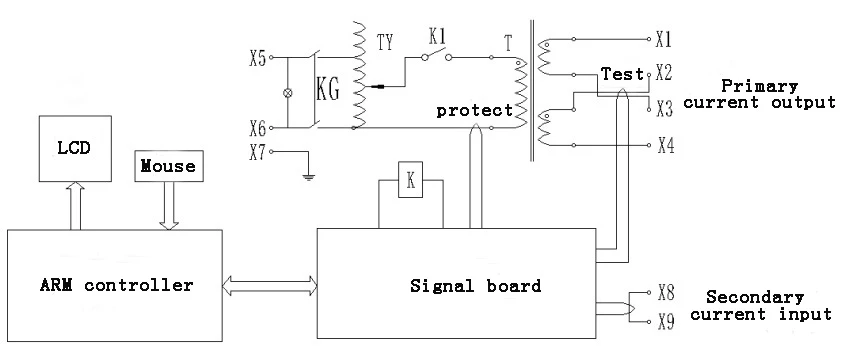

The circuit is illustrated in the diagram below. AC 220V power is supplied through terminals X5–X6, regulated by the TY voltage regulator, and then boosted by the T current booster. The resulting high current is delivered via a current transformer through output terminals X1–X4.
When the two coil sets are connected in parallel, the system outputs 2000 A at a maximum voltage of 5 V.
When the two coil sets are connected in series, the system outputs 1000 A at a maximum voltage of 10 V.
The ARM controller handles data display and control output for both the mouse interface and the signal board.
