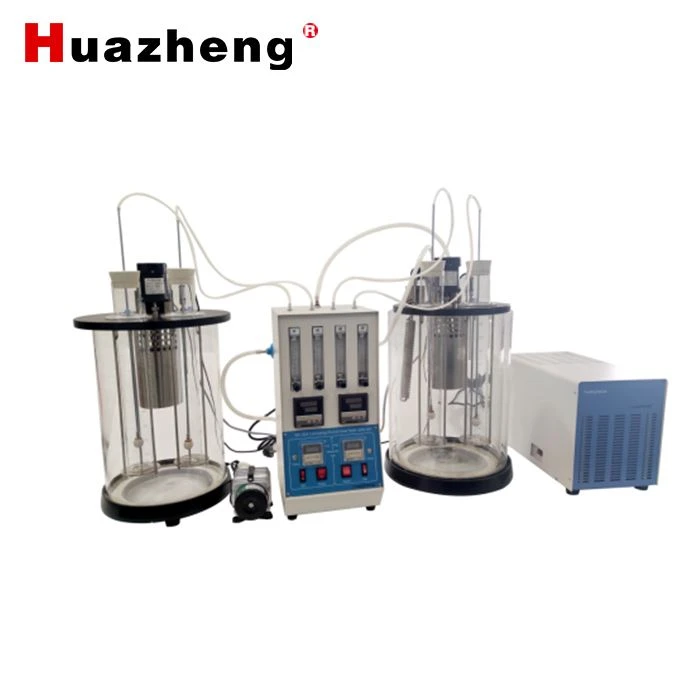

ASTM D892 Lubricating Oil Foaming Characteristics Test Apparatus
ASTM D892 Lubricating Oil Foaming Characteristics Test Apparatus Products Description The HZ-1024 anti-foam tester is designed and manufactured in accordance with the national standard GB/T 12579 and ASTM D892 of the American Society for Testing and Materials (ASTM). It is suitable for...
ASTM D892 Lubricating Oil Foaming Characteristics Test Apparatus
Products Description
The HZ-1024 anti-foam tester is designed and manufactured in accordance with the national standard GB/T 12579 and ASTM D892 of the American Society for Testing and Materials (ASTM). It is suitable for determining the foam tendency and foam stability of lubricating oils under specified conditions.
This lubricating oil anti-foam tester is primarily used to evaluate foam tendency and foam stability under specified conditions. The system integrates high-temperature and low-temperature water baths, a power supply unit, an airflow regulation device, a refrigeration module, and an air filtration system.
Instrument Structure Characteristics
HZ-1024 type lubricating oil anti-foam tester is mainly composed of high and low temperature water tank, power supply part, air flow regulation device, input refrigeration device, air filter, diffusion device, etc.

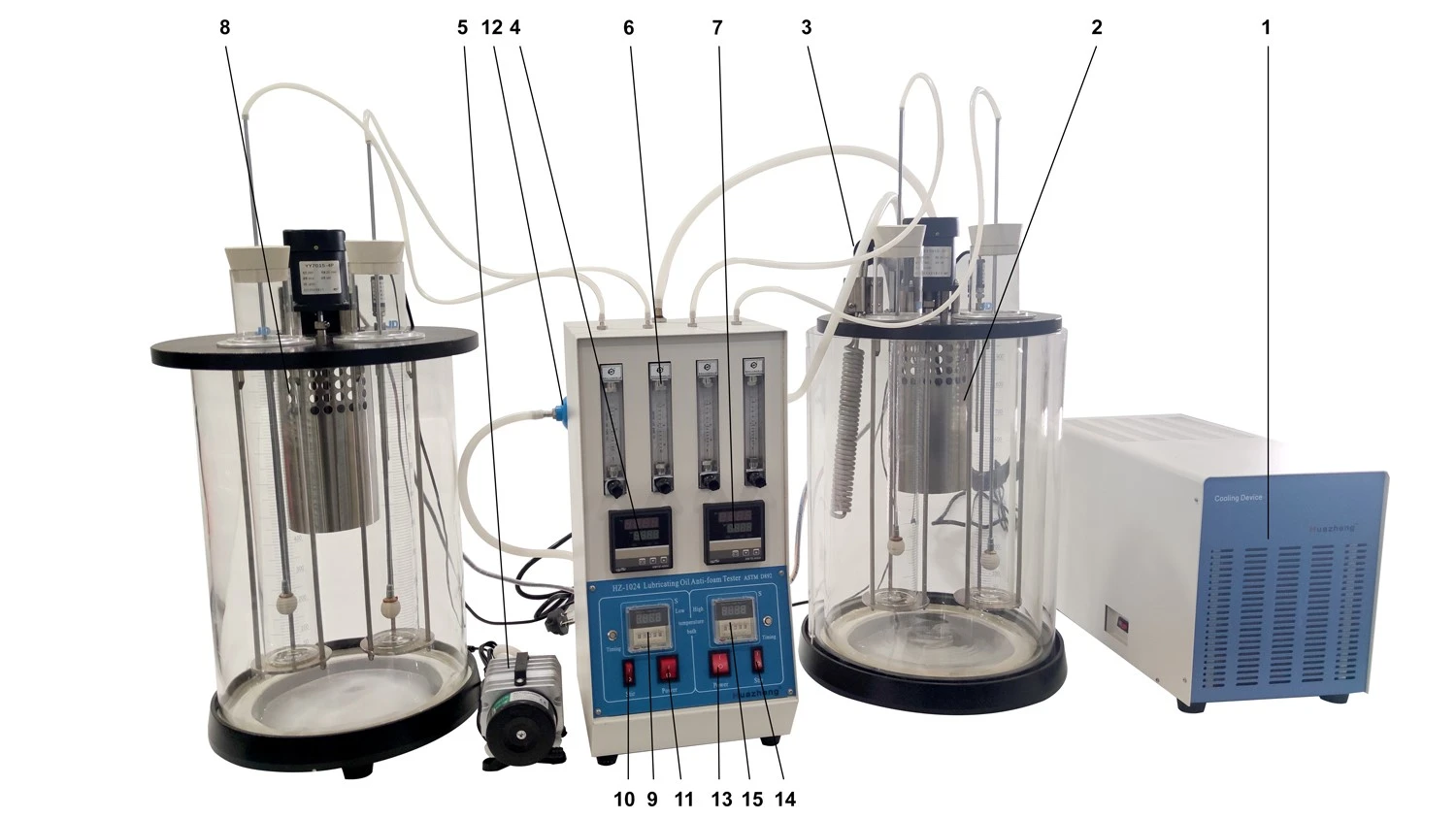

1Input refrigeration unit 2 Low temperature bath 3 cold head
4 Low temperature bath thermometer 5 Air pump 6 flow meter
7 High temperature bath thermometer 8 High temperature bath
9 Low temperature bath timer 10 Stirring switch
11 Low temperature bath power switch 12 Filter tower
13 High temperature bath power switch 14 stirring switch
15 high temperature bath timer
Instrument Technical Parameter
1.Input power: ≤2300W
2.Working power supply: AC220V±10% 50Hz
3.Temperature control range: low temperature 24℃ high temperature 93.5℃
4.Temperature control accuracy: ±0.5℃
5.Mixing motor: 25W
6.Temperature adjustment range: 0 ~ 99.9℃
7.Timing device: 0 ~ 99.99 hours
8.Portable cooler Power: 200W
9.Flow meter: 16 ~ 160ml/min
Packing List
|
No. |
Item |
Qty |
|
1 |
Certificate&manual |
1 each |
|
2 |
Main unit |
1 |
|
3 |
Cylinder(1000ml) |
4 |
|
4 |
Diffuser |
4 |
|
5 |
Air-inlet tube |
4 |
|
6 |
O-ring (4.5(ID)x1.8) |
4 |
|
7 |
Fuse (15A) |
2 |
|
8 |
filter |
1 |
|
9 |
Rubber plug for cylinder |
4 |
|
10 |
Electromagnetic air pump (45W) |
1 |
|
11 |
Portable refrigerator |
1 |
|
12 |
Thermometer |
2 |
|
14 |
Rubber plug for thermometer |
2 |
|
15 |
Connecting tube(φ6)(700mm,450mm,200mm) |
1 each |
|
16 |
Connecting tube(φ3.5)(600mm,700mm) |
2 each |
FAQ
1. When can I get a price quote?
You can contact us online or submit an inquiry. We typically provide a quote within 24 hours after receiving your request.
2. How do you handle after-sale service for overseas customers?
For issues occurring with our products, we offer:
12-month warranty coverage (see details below).
Online technical guidance to troubleshoot problems remotely.
Replacement parts shipped promptly based on your needs.
On-site support (if required): Our engineers can travel abroad to resolve critical issues.
3. What is the warranty period?
Our standard warranty period is 12 months (1 year). During this time, we provide:
Free technical support.
Replacement parts for manufacturing defects.
Solutions tailored to your specific issue.
