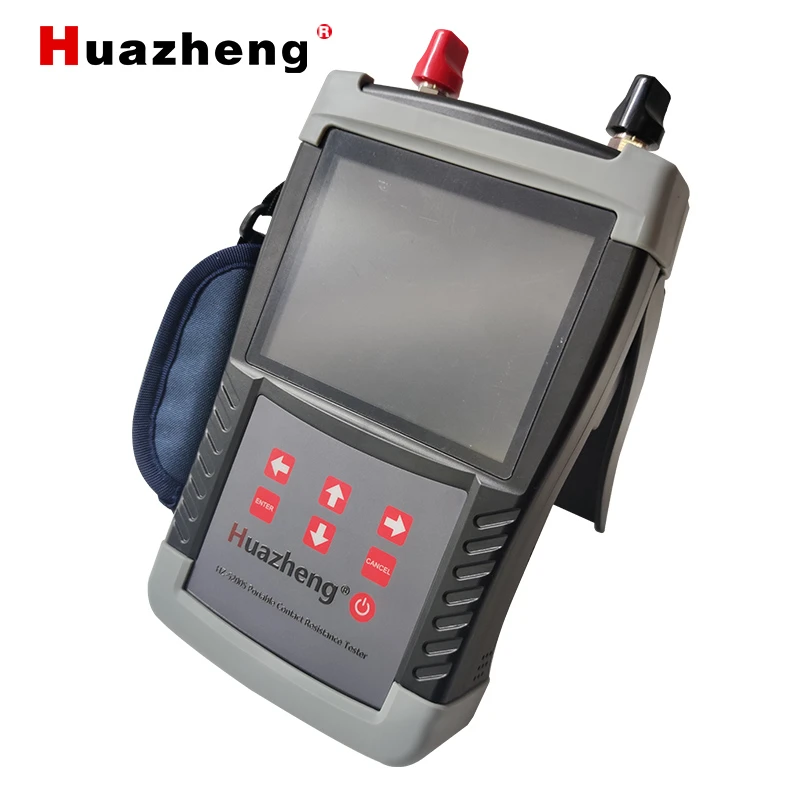

HZ-5200S Portable 200A CRM Contact Resistance Tester
HZ-5200S Portable 200A CRM Contact Resistance Tester Products Description Packing List Why Choose Us Customized solutions We understand that each client's needs are unique, so we can tailor solutions to meet your specific requirements to meet individual client needs. Quality control We...
HZ-5200S Portable 200A CRM Contact Resistance Tester
Products Description
HZ-5200S is mainly used for measuring the contact resistance of switch contacts and other micro-ohm level resistances, featuring fast testing speed and high measurement accuracy.
|
Measuring Range |
|||
|
Output Current |
200A,150A,100A,80A,50A,30A |
||
|
Measuring Range |
200A 0~1mΩ |
||
|
150A 0~2mΩ |
|||
|
100A 0~5mΩ |
|||
|
80A 0~8mΩ |
|||
|
50A 0~10mΩ |
|||
|
30A 0~20mΩ |
|||
|
Technical Index |
|||
|
Accuracy |
±(Reading×0.5%+1µΩ) |
||
|
Resolution Ratio |
0.1µΩ |
||
|
Test Power Supply |
Constant current limit voltage,about 2V |
||
|
Input Voltage |
Maximum 5V |
||
|
Testing Times |
More than 500 times(full charge, fast measurement mode) |
||
|
Test Line |
Resistance less than 8mΩ |
||
Packing List
|
No. |
Item |
Qty |
|
1 |
Hand-held Circuit Breaker Contact resistance tester |
1 |
|
2 |
Test lines (red and black each) |
1 |
|
3 |
Charger |
1 |
|
4 |
User manual |
1 |
|
5 |
Certificate and factory test report |
1 |
|
6 |
Standard resistor |
1 |
|
7 |
External printer(optional) |
1 |
Why Choose Us
Customized solutions
We understand that each client's needs are unique, so we can tailor solutions to meet your specific requirements to meet individual client needs.
Quality control
We strictly abide by the international quality management system and strictly control every link from raw material procurement, production process, product quality inspection, etc. to ensure the stability and reliability of our products and services.
Our service
The company has a professional sales team to provide you with high-quality pre-sales consulting services. During the order production process, customers can communicate with us at any time to understand the production progress. At the same time, we provide high-quality after-sales service to meet the different needs of customers.
FAQ
1. When can I get a price quote?
You can contact us online or submit an inquiry. We typically provide a quote within 24 hours after receiving your request.
2. How do you handle after-sale service for overseas customers?
For issues occurring with our products, we offer:
12-month warranty coverage (see details below).
Online technical guidance to troubleshoot problems remotely.
Replacement parts shipped promptly based on your needs.
On-site support (if required): Our engineers can travel abroad to resolve critical issues.
3. What is the warranty period?
Our standard warranty period is 12 months (1 year). During this time, we provide:
Free technical support.
Replacement parts for manufacturing defects.
Solutions tailored to your specific issue.
