HZ-R10 Underground Cable Route Tracing Equipment
Products Description
I. Overview
The Cable Route Tracer consists of a transmitter and a route receiver, and is specifically designed for cable fault location testing and path detection. It incorporates a microprocessor-based central processing unit and dedicated integrated circuits, offering high receiving sensitivity, low static drift, strong anti-interference capability, stable operation, and high accuracy. The device is built to be more rugged and durable, significantly reducing the need for repairs. The route receiver is powered by a high-capacity rechargeable lithium battery, providing extended operation time.
II. Basic Composition and Main Applications
The instrument includes the following two components:
Transmitter: Sends test signals into the cable under test.
Route Receiver: Detects signals via a sensor near the buried cable and identifies the cable path direction.
III. Technical Specifications
| Item | Specification |
| Detection Range | 5 km |
| Detection Depth | 3 m |
| Path Error | 5 cm |
| Transmitter Parameters | |
| Output Frequency | 9.6 kHz |
| Output Power | 5 W |
| Route Receiver Parameters | |
| Input Frequency | 9.6 kHz |
| Path Error | ±2 cm |
| Depth Measurement Error | ±5 cm |
| Power Supply | 9 V rechargeable lithium battery, 8 hours continuous operation |
| Display | High‑brightness true‑color LCD, resolution 320 × 240, outdoor applicable |

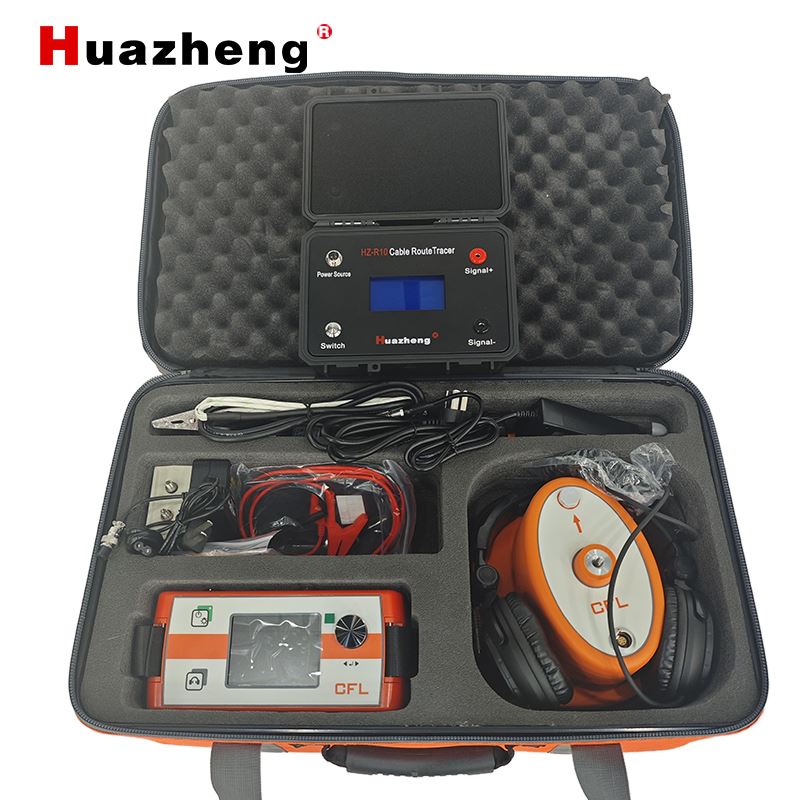

IV. Standard Configuration
One receiver host with shoulder strap
One slave sensor
One adjustable height handle with a range of 450 – 750 mm
One headphone with hi-fi sound quality
One signal cable, 1.20 m long, for connecting the receiver host to the sensor
One lithium-ion battery charger, input: AC100-240V/0.5A, output: DC8.4V/1A
FAQ
1. When can I get a price quote?
You can contact us online or submit an inquiry. We typically provide a quote within 24 hours after receiving your request.
2. How do you handle after-sale service for overseas customers?
For issues occurring with our products, we offer:
12-month warranty coverage (see details below).
Online technical guidance to troubleshoot problems remotely.
Replacement parts shipped promptly based on your needs.
On-site support (if required): Our engineers can travel abroad to resolve critical issues.
3. What is the warranty period?
Our standard warranty period is 12 months (1 year). During this time, we provide:
Free technical support.
Replacement parts for manufacturing defects.
Solutions tailored to your specific issue.
