What is the noise immunity of a Partial Discharge Detector?

Hey there! As a supplier of Partial Discharge Detectors, I'm super stoked to chat about the noise immunity of these nifty devices. So, what exactly is the noise immunity of a Partial Discharge Detector?

First off, let's get a basic understanding of partial discharge. Partial discharge is a localized electrical discharge that occurs within an insulating material when the electrical stress exceeds a certain level. It can be a sign of potential insulation problems in electrical equipment like transformers, cables, and switchgear. That's where partial discharge detectors come in handy, as they help us detect and analyze these discharges.

Now, noise immunity is all about how well a partial discharge detector can distinguish the actual partial discharge signals from the background noise. In real-world scenarios, there's a whole bunch of noise sources out there, such as electromagnetic interference (EMI), radio frequency interference (RFI), and even ambient electrical noise. If a detector can't handle this noise effectively, it might give false readings or miss the real partial discharge signals, which could lead to inaccurate assessments of the equipment's condition.

One of the key factors that affect the noise immunity of a partial discharge detector is its design and technology. Modern detectors are equipped with advanced signal processing algorithms and filtering techniques to minimize the impact of noise. For example, some detectors use digital signal processing (DSP) to analyze the incoming signals and separate the partial discharge signals from the noise. This allows for more accurate detection and measurement of partial discharges.

Another important aspect is the sensitivity of the detector. A highly sensitive detector can pick up even the smallest partial discharge signals, but it might also be more susceptible to noise. So, it's a bit of a balancing act. The detector needs to be sensitive enough to detect the partial discharges, but also have good noise immunity to avoid false alarms.

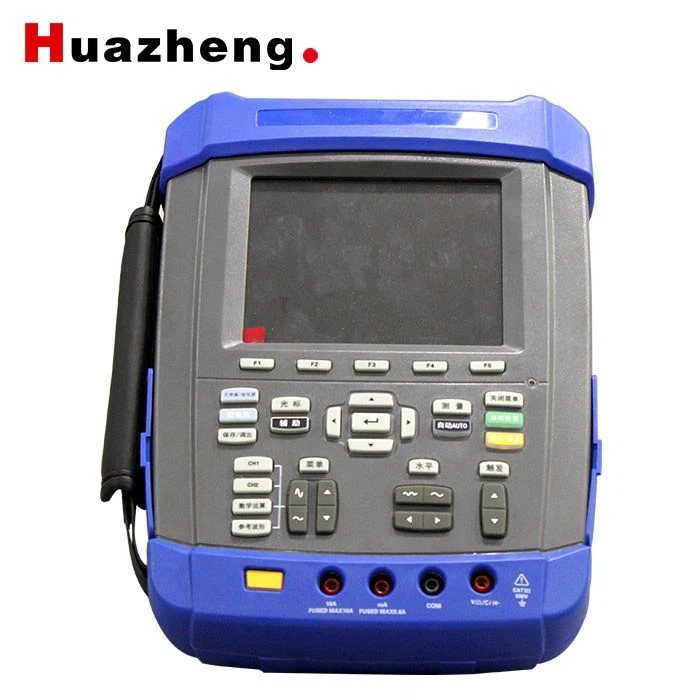

Let's take a look at some of the products we offer. We have the HZ-9003C Portable Handheld Multifunctional Partial Discharge Tester. This bad boy is designed with high noise immunity in mind. It uses advanced filtering and signal processing techniques to ensure that it can accurately detect partial discharges even in noisy environments. Whether you're testing transformers in a power substation or cables in a factory, this tester can handle it.

Then there's the HZJF-9041D 4 Channels Partial Discharge Detector. With four channels, it allows for simultaneous monitoring of multiple points. It also has excellent noise immunity, thanks to its state-of-the-art design. This detector is great for large-scale electrical systems where you need to monitor multiple components at once.

And don't forget about the HZJF-9104 Four Channels Partial Discharge Tester. This one is also packed with features to enhance noise immunity. It can effectively filter out the background noise and focus on the partial discharge signals, providing accurate and reliable results.

So, how do we measure the noise immunity of these detectors? Well, there are several methods. One common approach is to use a test setup where we introduce known levels of noise and measure how well the detector can still detect the partial discharge signals. We also look at the signal-to-noise ratio (SNR), which is a measure of the strength of the partial discharge signal compared to the background noise. A higher SNR indicates better noise immunity.

In addition to the technical aspects, proper installation and calibration of the detector are also crucial for ensuring good noise immunity. If the detector is not installed correctly or calibrated properly, it might not perform as expected. So, it's important to follow the manufacturer's instructions and guidelines when setting up and using the detector.

If you're in the market for a partial discharge detector, it's essential to consider the noise immunity. A detector with good noise immunity will give you more accurate and reliable results, which is crucial for maintaining the safety and reliability of your electrical equipment.

If you're interested in learning more about our partial discharge detectors or have any questions about noise immunity, feel free to reach out. We're here to help you make the right choice for your needs. Whether you're a small business or a large utility company, we've got the products and expertise to support you.

In conclusion, the noise immunity of a partial discharge detector is a critical factor in its performance. With the right technology and design, our detectors can effectively handle the background noise and provide accurate detection of partial discharges. So, if you're looking for a reliable partial discharge detector, give us a shout. We'll be happy to discuss your requirements and find the best solution for you.

References:

• Electrical Insulation Handbook, various authors
• IEEE Standards on Partial Discharge Testing
