How does a Partial Discharge Detector detect partial discharges in rotating machines?

Hey there! As a supplier of partial discharge detectors, I'm super excited to dive into how these nifty devices detect partial discharges in rotating machines. It's a topic that's not only fascinating but also crucial for maintaining the health and safety of these machines.

First off, let's talk about what partial discharge actually is. In simple terms, partial discharge is a localized electrical discharge that occurs within an insulating material. In rotating machines, this can happen due to a variety of reasons, like insulation aging, mechanical stress, or even environmental factors. If left undetected and untreated, partial discharge can lead to serious damage to the machine, including insulation breakdown and ultimately, machine failure.

So, how do our partial discharge detectors come into play? Well, there are a few different methods that these detectors use to pick up on partial discharges. One of the most common methods is the electrical method. This involves measuring the electrical signals generated by the partial discharge. Our detectors are equipped with highly sensitive sensors that can pick up even the smallest electrical pulses.

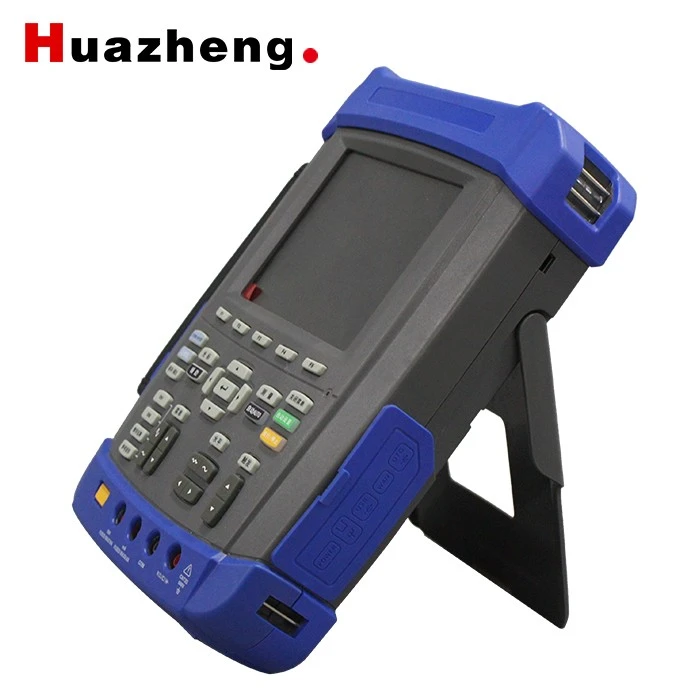

For instance, take our HZ - 9003C Portable Handheld Multifunctional Partial Discharge Tester. This bad boy is designed to be portable and easy to use. It can detect partial discharges in real - time and provide accurate measurements of the discharge magnitude and frequency. The electrical sensors in this tester are calibrated to be extremely sensitive, so they can detect even the slightest signs of partial discharge.

Another method that our detectors use is the acoustic method. Partial discharges generate ultrasonic waves, and our detectors can pick up these waves using acoustic sensors. The HZJF - 9041D 4 Channels Partial Discharge Detector is a great example. With its four channels, it can monitor multiple points in a rotating machine simultaneously. The acoustic sensors in this detector are placed strategically around the machine to capture the ultrasonic signals. Once the signals are detected, the detector analyzes them to determine the location and severity of the partial discharge.

The optical method is also used in some of our high - end detectors. Partial discharges can emit light, and our optical sensors can detect this light. The HZJF - 9104 Four Channels Partial Discharge Tester has advanced optical sensors that are capable of detecting the faint light emissions from partial discharges. This method is particularly useful for detecting partial discharges in hard - to - reach areas or in situations where electrical or acoustic interference might be an issue.

Now, let's get into the details of how these detectors analyze the data they collect. Once the sensors detect the signals (electrical, acoustic, or optical), the detector converts these signals into digital data. This data is then processed using sophisticated algorithms. These algorithms are designed to filter out any background noise and identify the characteristic patterns of partial discharges.

For example, if the electrical signal has a certain frequency and amplitude pattern that matches the known pattern of a partial discharge, the detector will flag it as a potential issue. The same goes for acoustic and optical signals. The detector compares the detected signals to a database of known partial discharge patterns to make an accurate diagnosis.

In addition to detecting partial discharges, our detectors also provide valuable information about the severity of the problem. They can calculate the discharge magnitude, which gives an indication of how intense the partial discharge is. A high discharge magnitude means that the partial discharge is more likely to cause damage to the insulation and the machine.

The detectors can also track the development of partial discharges over time. By taking regular measurements, we can see if the partial discharge is getting worse or staying stable. This information is crucial for maintenance planning. If the partial discharge is increasing in severity, it might be necessary to take immediate action, like replacing the insulation or performing repairs.

One of the great things about our partial discharge detectors is their user - friendly interface. They are designed to be easy to operate, even for people who are not experts in electrical engineering. The data is presented in a clear and understandable way, with graphs and charts that show the discharge magnitude, frequency, and location. This makes it easy for maintenance personnel to quickly assess the situation and make informed decisions.

So, if you're in the business of maintaining rotating machines, having a reliable partial discharge detector is a must - have. Our range of detectors offers different features and capabilities to suit your specific needs. Whether you need a portable handheld tester for on - the - go inspections or a multi - channel detector for continuous monitoring of large machines, we've got you covered.

If you're interested in learning more about our partial discharge detectors or are thinking about making a purchase, don't hesitate to reach out. We're here to help you find the right solution for your rotating machine maintenance needs. Let's start a conversation and see how we can work together to keep your machines running smoothly.
