Can a CT PT Analyzer be used for measuring the core loss of CT and PT?

Hey there! As a supplier of CT PT Analyzers, I often get asked if our analyzers can be used for measuring the core loss of CT (Current Transformer) and PT (Potential Transformer). Well, let's dive right into this topic and find out.

First off, let's understand what core loss is. Core loss in CTs and PTs is the energy dissipated in the core due to hysteresis and eddy currents. It's an important parameter because it affects the accuracy and efficiency of these transformers. High core loss can lead to overheating, reduced performance, and even premature failure of the CT or PT.

Now, the big question: Can our CT PT Analyzers measure core loss? The answer is a resounding yes! Our analyzers are designed with advanced technology to accurately measure core loss, among many other parameters.

Let me introduce you to some of our top - notch products. Take the HZCT - 100C 0.05% Accuracy Current Transformer CT PT Analyzer. This bad boy is packed with features that make it ideal for core loss measurement. It has a high - precision measurement system that can detect even the slightest changes in core loss. The 0.05% accuracy ensures that you get reliable and accurate results every time. Whether you're testing a small - scale CT or a large - capacity PT, the HZCT - 100C can handle it with ease.

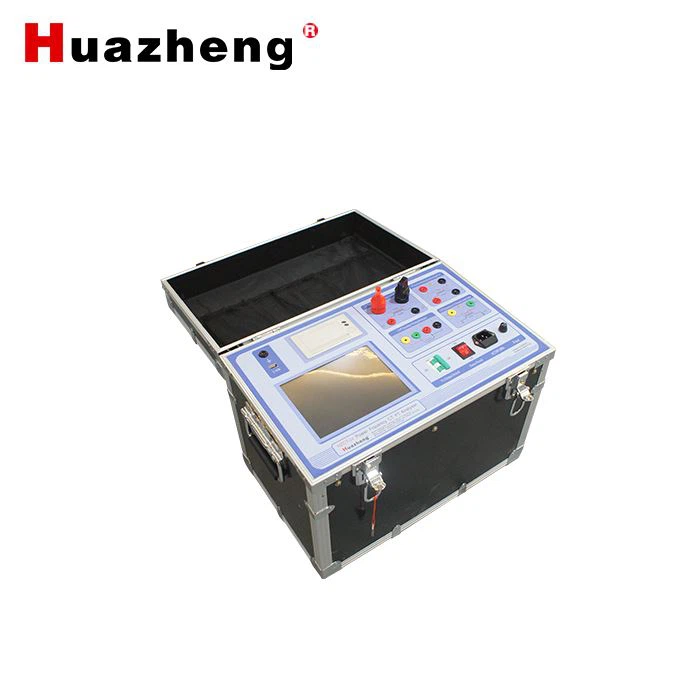

Another great option is the HZCT - IV Power Frequency CT PT Analyser. This analyzer is specifically designed for power frequency applications. It can measure core loss under different power frequency conditions, which is crucial because the core loss can vary depending on the frequency. With the HZCT - IV, you can simulate real - world operating conditions and get a more accurate picture of the core loss of your CT or PT.

And then there's the HZCT - 100B Variable Frequency Current Transformer Characteristic CT PT Tester. This tester is unique because it allows you to vary the frequency during the measurement. This is important because in some applications, the CT or PT may operate at different frequencies. By being able to test at variable frequencies, you can get a comprehensive understanding of the core loss characteristics of your transformer.

So, how exactly do our CT PT Analyzers measure core loss? Well, they use a combination of electrical and magnetic principles. When a CT or PT is energized, an alternating magnetic field is created in the core. This magnetic field causes hysteresis and eddy currents, which result in core loss. Our analyzers measure the input power and the output power of the transformer. The difference between the input and output power is the core loss.

Let's talk about the benefits of using our CT PT Analyzers for core loss measurement. Firstly, accuracy is key. Our analyzers are calibrated to provide highly accurate measurements. This means that you can trust the results and make informed decisions about the performance of your CT or PT. Secondly, they are easy to use. You don't need to be a technical expert to operate our analyzers. They come with user - friendly interfaces and clear instructions. Thirdly, they are time - saving. Traditional methods of measuring core loss can be time - consuming and labor - intensive. Our analyzers can provide results in a matter of minutes, allowing you to quickly assess the condition of your transformers.

In addition to core loss measurement, our CT PT Analyzers can also measure other important parameters such as ratio error, phase angle error, and excitation characteristics. This makes them a versatile tool for transformer testing. You can use them to perform comprehensive tests on your CTs and PTs, ensuring that they are operating at their best.

Now, if you're in the market for a CT PT Analyzer for core loss measurement, you might be wondering about the cost. Well, we offer competitive pricing for our products. We understand that every customer has different budgets, and we strive to provide high - quality analyzers at affordable prices.

If you're interested in learning more about our CT PT Analyzers or want to discuss your specific requirements, don't hesitate to reach out. We have a team of experts who are ready to assist you. Whether you're a small - scale electrical contractor or a large - scale power utility, we can help you find the right analyzer for your needs.

In conclusion, our CT PT Analyzers are definitely capable of measuring the core loss of CTs and PTs. With their advanced features, high accuracy, and ease of use, they are the perfect tool for transformer testing. So, if you're looking to ensure the optimal performance of your CTs and PTs, consider investing in one of our analyzers.

References

• Electrical Power Transformer Engineering by Turan Gonen
• Transformer Testing Handbook by James H. Harlow
